How to use a PSD Downpipe on your IDI factory turbo

Status
Not open for further replies.

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN
OK...so what originally brought me here was the search for a DP for my first ever, new to me 94 Turbo IDI. I was directed here from another site. After a lot of lurking around, and asking some questions about other members set ups I decided to tackel this job myself, and here is how it played out:

I bought a 4", aluminized OBS Powerstroke full turbo back, "off road" (no CAT) exhaust, with a muffler off of Ebay from seller the_power_shop. It set me back a little under $300 with the shipping. The exhaust will work for all cab/bed configurations, and bolt up from the DP back went off with out a hitch.

The following is how I modded the DP that came with it to work with my Factory Turbo. Here are the two DPs next to each other. Note the bend at the top of the OBS unit:

You must be registered for see images attach


You must be registered for see images attach

Last edited:

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN

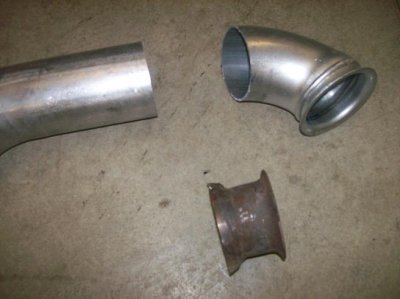

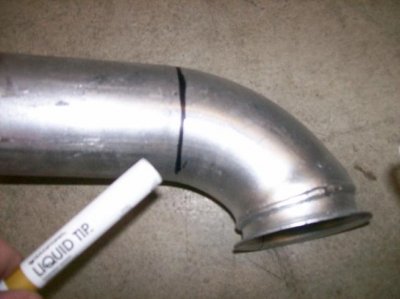

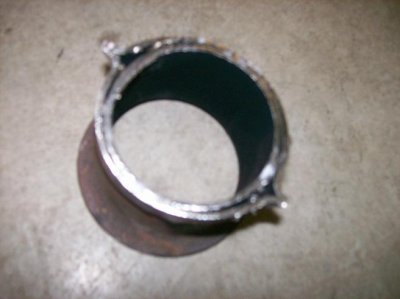

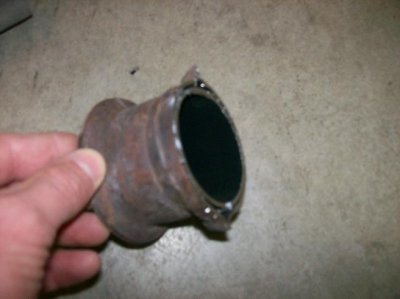

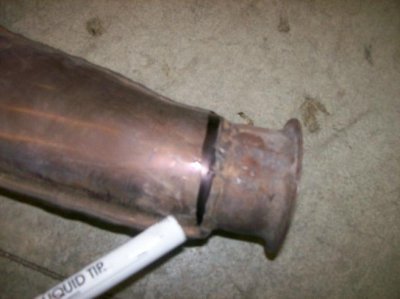

I then cut the ends off of both DPs. On your factory one, you want to cut about 1/2" BEHIND the factory weld:


Attachments

  • 100_2583.jpg
    38.5 KB · Views: 214
  • 100_2584.jpg
    38.6 KB · Views: 183
  • 100_2585.jpg
    42.3 KB · Views: 183
  • 100_2586.jpg
    34.9 KB · Views: 177
  • 100_2587.jpg
    34.2 KB · Views: 173

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN

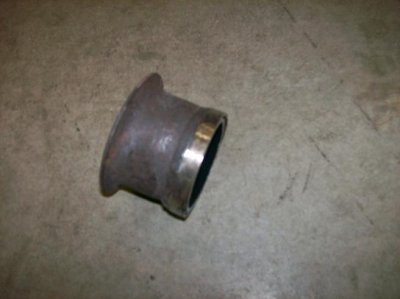

I then ground the little "flanges" off of the factory piece. I used a heavy hammer to tap around the OBS unit untill I had a slight taper built into the very end of it. Hard to see but that is what the last pic. is of:


Attachments

  • 100_2591.jpg
    34.4 KB · Views: 169
  • 100_2592.jpg
    35.2 KB · Views: 169
  • 100_2593.jpg
    25.4 KB · Views: 184
Last edited:

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN

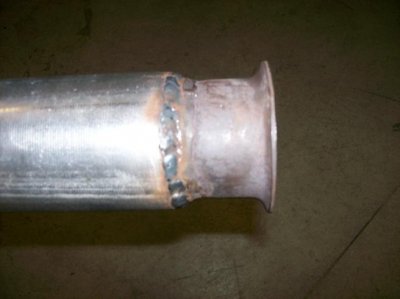

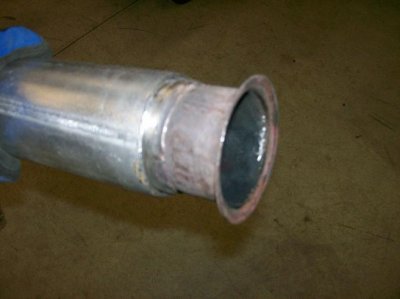

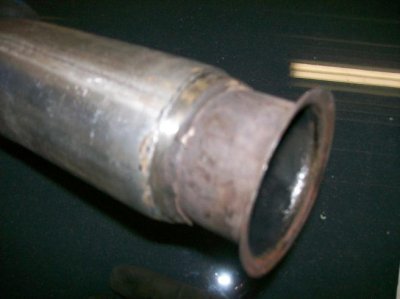

All welded up...


Attachments

  • 100_2595.jpg
    34.5 KB · Views: 233
  • 100_2596.jpg
    35.8 KB · Views: 183
  • 100_2597.jpg
    33.6 KB · Views: 224

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN

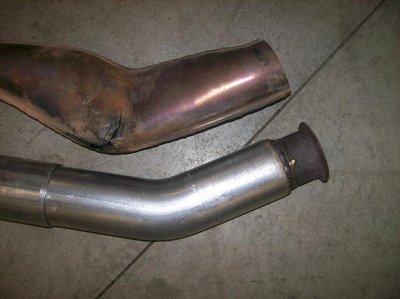

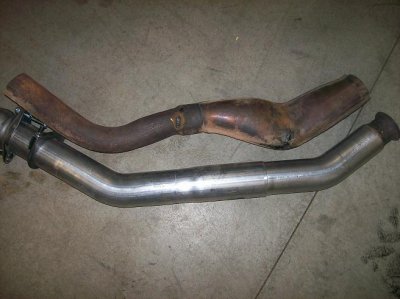

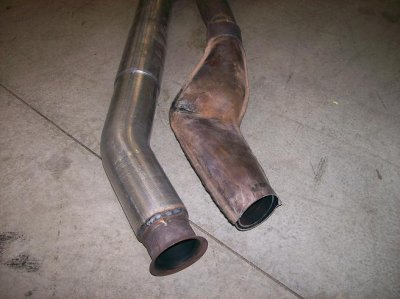

This is what I ended up with:


Attachments

  • 100_2598.jpg
    53.3 KB · Views: 254
  • 100_2599.jpg
    53 KB · Views: 212
  • 100_2600.jpg
    55.3 KB · Views: 222

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN

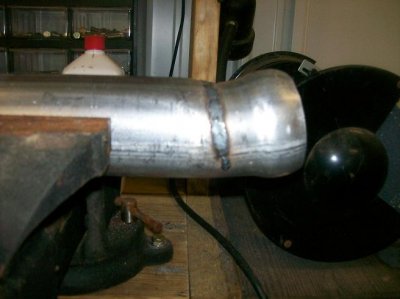

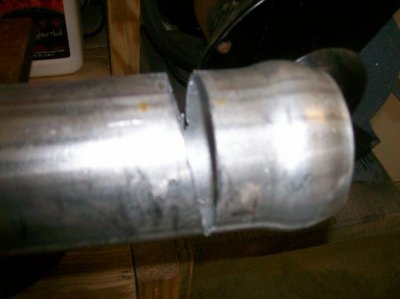

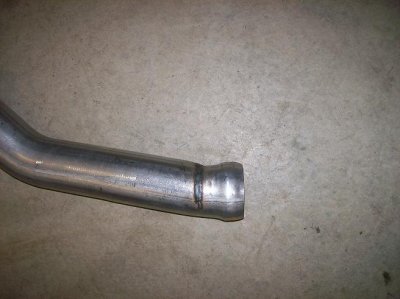

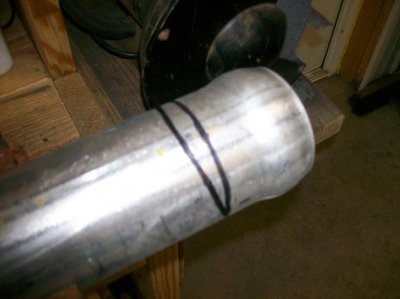

Once I had it all bolted in, I discovered on my truck the alignment to the CAT Delete pipe was not favorable. I decided to fix it by adjusting the angle at the end rather than at the top. I had the best clearance to the fire wall that I thought I could get, so this seemed like the best option for me. The OBS unit is 2-piece so it goes in/out VERY easily, and I was able to leave the top piece bolted to the trubo...


Attachments

  • 100_2602.jpg
    39.3 KB · Views: 146
  • 100_2604.jpg
    34.3 KB · Views: 141
  • 100_2605.jpg
    40.6 KB · Views: 170
  • 100_2606.jpg
    49.2 KB · Views: 170

Mr.Diesel

Registered User
Joined
Nov 17, 2009
Posts
167
Reaction score
1
Location
Goshen IN
That's it. The rest is the same for either an IDI or a PSD, very straight forward. A sawzall, a welder and half a day and you're all set! I sugest having a friend around when it's time to bolt the new DP to the turbo, as it is VERY hard to hold it up in there and get the V Band clamp around it and tightened. Hope this helps some one, enjoy!
