V-8 Mercedes diesel

[Ironman03R]

I've come across a huge v-8 Mercedes at work and dont know what it came from. I've looked online and found no info or pics. I assume it was an off road application. It had a mechanical injection pump and what looked like mounts for a turbo on each manifold.
Anyone ever see one of these?



[Exekiel69]

Nope but I'd be interesting to find out. Got any pics?



[Ironman03R]

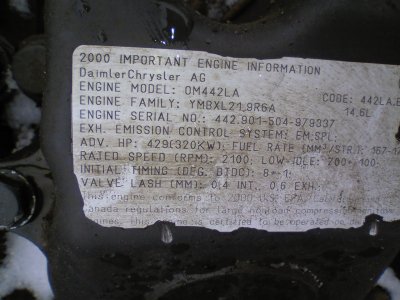

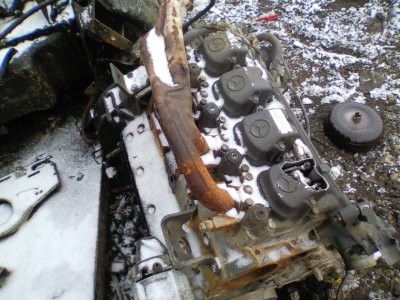

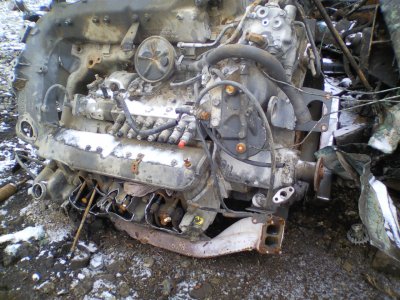

Pics



[rhkcommander]

can come in truck, or ag.

Displacement is 14.6L. its a OM442LA engine made by Daimler Chrysler

turbo was called a K27 i guess. Google got a lot of hits for that

http://www.youtube.com/watch?v=usri3FlcpCw
http://www.youtube.com/watch?v=8z2eS7pYxN0


"The 400 series:
The 400 series of industrial deiesel engines comprises six-eight, ten-and twelve-cylinder V-type engines, with outputs ranging from 80 to 612 kW. The V-type engines are complemented by vertical and horizontal in-line engines.
In order to meet all customers demands, the V-type in-line engines are available as naturally aspirated versions or as turbocharged versions with or without intercoolers.
The 400 series engines use the Mercedez-Benz direct injection system which excels with i ts extremely favourable specific fuel consumption and pollutant emission levels.
The 400 series engines are used as power units for mobile cranes and buses as well as for agricultural machinery and construction equipment."


OM 442, max. 218 kW
OM 442 A, max. 269 kW
OM 442 LA, max. 405 kW
http://www.americanmachinist.com/Calculators/HorseToKilo.aspx
That suggests that it made 545hp



[typ4]

can come in truck, or ag.

Displacement is probably 442 cu. its a OM442LA engine made by Daimler Chrysler 5hp

try 14.6 litres. roughly 888cu in.



[rhkcommander]

try 14.6 litres. roughly 888cu in.

ah gotcha. MUCH bigger than i thought I see it on the sticker now with a double take lol.



[Ironman03R]

Told ya it was big! lol I've nerver seen it in anything, must be kinda rare.



[ofourthreefive]

It came out of a Euro based farm truck.

http://en.wikipedia.org/wiki/Claas_Jaguar
