Under-hood fuse/relay panel question

[EMD_DRIVER]

I was looking in the fuse/relay panel on my 93 and I can see that all the relays are there. One of them is for an electric fuel pump. Since the 7.3 never came with EFP's, I would like to find the output wire that comes off of it. I'll be putting an EFP in the thing tomorrow and would like to come off the factory fuel pump relay, if possible. Anyone know where to find it?

Gary



[MIDNIGHT RIDER]

When you take loose the panel and turn it upside-down, you will probably find that that relay position is empty of terminals.

Someone over at Full Size Broncos done a TECH write-up on taking junk-yard fuse-blocks and robbing terminals from two or three, in order to fill the empty openings in the original fuse block.


This may not be your case, but if that relay position is, in fact, empty of terminals, you can get an identical fuse/relay panel from the junk-yard and carefully remove the terminals from it and use them in yours.

I hope this makes sense.



[EMD_DRIVER]

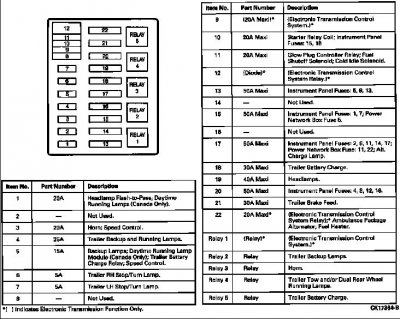

I guess I must have been wrong.. Looking at this diagram, there is no electric fuel pump relay....



[adrianspeeder]

No, not on a diesel. That position was robbed for the trailer reverse relay if I remember right.

Adrianspeeder
