Hey all,

I am installing a pair of pyrometers in my 94 superduty (I salvaged two banks dynafact guages from junked trucks for super cheap). I dont really like the pillar gauge pod setup, they seem to be cheap and dont mount nicely whenever ive installed them.

Who has seen or done it differently? I have seen ceiling mounted pods up above the rear view mirror (I dont have a rear view mirror in my truck) or down where that random slot thing is under the dash. Show me some examples!


Kizer

Supporting Member
Supporting Member
Joined
Mar 22, 2007
Posts
660
Reaction score
192
Location
Denton, Texas
Who has seen or done it differently?

I just started playing with ABS sheet goods in hopes of fab'ing my own "over-head" gauge cluster and switch mount.

Per YouTube videos it's not a complicated process. We'll see.

I'll let you know how it goes.

So far, I'm about $50 in to it and I've got (I think) all of the materials ... now template making is on the schedule.


ISPKI

Welding/metallurgical engineer/Metalsmith
Joined
Jul 13, 2015
Posts
819
Reaction score
365
Location
Granby CT
I just started playing with ABS sheet goods in hopes of fab'ing my own "over-head" gauge cluster and switch mount.

Per YouTube videos it's not a complicated process. We'll see.

I'll let you know how it goes.

So far, I'm about $50 in to it and I've got (I think) all of the materials ... now template making is on the schedule.
Neato. I have access to a makerbot replicator at work, a crazy number of printers at my school (they can print a chevy LS block and heads in one shot), tons of sheet metal fabrication capability and materials, and a full wood shoppe. I havent decided what I want to make it out of yet.

I really like the layout of the old centurion trucks with their overhead panels so I was thinking about going that route, especially since my truck has no rear view mirror. Only concern I have for that is having to run the wires all the way up there, seems like alot more work.

Alternatively thinking about making an underdash pod to mount down low and maybe have a mount for a trailer controller and some other stuff. Theres alot of dead space on the dash that I could replace.


Kizer

Supporting Member
Supporting Member
Joined
Mar 22, 2007
Posts
660
Reaction score
192
Location
Denton, Texas
I have access to a makerbot replicator at work, a crazy number of printers at my school (they can print a chevy LS block and heads in one shot), tons of sheet metal fabrication capability and materials, and a full wood shoppe. I havent decided what I want to make it out of yet.
Oh man ... I'd be "like a ***** in a drug store" ... endless possibilities with the correct tools and materials...

I really like the layout of the old centurion trucks with their overhead panels

One of my parts trucks had the "shelf / gun rack" mounted overhead. I requisitioned that shelf as my "foundation"


Kizer

Supporting Member
Supporting Member
Joined
Mar 22, 2007
Posts
660
Reaction score
192
Location
Denton, Texas
so ... J u n k y is on the list .... Jeez

Mods: Your stupid robot makes it look like I'm using "foul language" when I'M TRYING REALLY HARD NOT TO!


chillman88

Supporting Member
Supporting Member
Joined
Feb 22, 2017
Posts
5,221
Reaction score
4,841
Location
Central NY
so ... J u n k y is on the list .... Jeez

Mods: Your stupid robot makes it look like I'm using "foul language" when I'M TRYING REALLY HARD NOT TO!

That's the biggest thing I dislike about the censoring. I immediately try to figure out what it's supposed to say and I'm usually wrong!


TNBrett

Full Access Member
Joined
Oct 24, 2020
Posts
512
Reaction score
459
Location
Middle Tennessee
I did this
You must be registered for see images attach

You must be registered for see images attach

It was an $8 project box off of Amazon. I like it down low, because it’s out of my field of vision at night, but in the bright sun they can sometimes get obscured by glare. I’m pretty sure that will get fixed when I get around to tinting the windows.


miles1400

Full Access Member
Joined
Aug 17, 2020
Posts
296
Reaction score
242
Location
Macungie PA
You must be registered for see images attach

here is some ideas, glowshift also sell gauge pods like the dash one and a few others.

remember, it is ok to follow in someone elses footsteps, all the good ideas are already taken.

the truck in the pic in darrin toshs truck i believe


ISPKI

Welding/metallurgical engineer/Metalsmith
Joined
Jul 13, 2015
Posts
819
Reaction score
365
Location
Granby CT

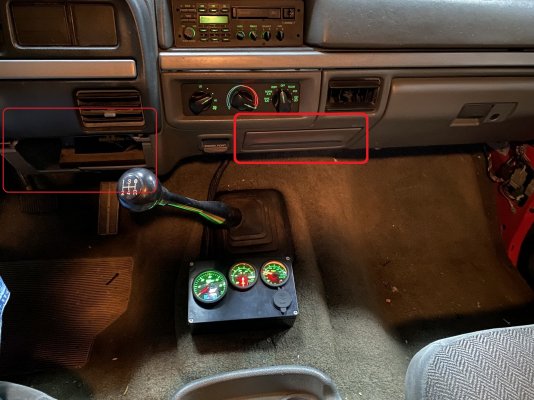

I was thinking of replacing either of these things with a gauge holder. I would also like to get a cup holder installed but that will be another project for another day. I'm going to start with the right coin tray thing or whatever that thing is supposed to be, mine doesnt even match my truck so I wont feel bad about tossing it.
