How To: Remove That Infamous Top Starter Bolt

Thatoneguy

Full Access Member
Joined
Jul 10, 2017
Posts
615
Reaction score
130
Location
Boerne, Texas
Hey.This just came to me.Do you guys realize what we could do? You could take a long threaded rod and make a very long top bolt.Set two nuts (I would use nyloc's) to normal length for the starter.Then another set of dual nuts out at the end for your custom easy to reach bolt head,just past the starter,or actually I guess just a couple inches short of the starter,this way a deep socket with a ratchet can back it right out without fuss and so that taking it out and in is effortless as well.This would be super fast to turn out and to turn it back in and line it up with your fingers super easy too.
Someone should try it and post a pic.

I like the idea... But I don't forsee myself burning up enough starters to be worth it lol


BradleyCampbell

Registered User
Joined
Aug 3, 2021
Posts
1
Reaction score
0
Location
99006
Just how many cus words do you suppose that one single bolt is accountable for anyway?:D

This is a very short and sweet pictorial guide which will likely save you from using the lord's name in vain once and for all.


Your probably going to be very surprised when you see this.You'll likely come to understand that,that top bolt isn't actually that hard to get to,after all.I know,your skeptical but just wait until next time.You'll see.

I took this pic at the slightly wrong angle.What you need is a socket and ratchet combo measuring approx 9 and 3/4 of an inch.
You must be registered for see images attach



If your wires are in the way to do this,then you'll need to disconnect them first.Your batteries should be unplugged before you pull your starter anyway.So go ahead and move them out of the way.When you go to put the starter back in,route your wires out of the way for an easier and quicker job of it next time.

Place your socket and extension(s) up in as shown,first without your ratchet on.Guide it onto the top bolt by feeling the head of the bolt with your other hand.Now that you've guided the combo onto the head of the bolt,slowly and carefully slide your ratchet on and turn it out.

You'll notice if you try and turn it out all the way,you'll not be able to remove your ratchet so before you bind up and have to turn it back in,simply take your ratchet off and finish turning the bolt out just by spinning the extension(s).

This also means of course,that you'll turn the bolt back in when you replace your starter,by using just the extension until you gain the clearance to fit your ratchet on and snug the bolt down.

You must be registered for see images attach



That's it.That really is all there is to it.Now you can remove and install a starter on an IDI engine in less than 20 minutes from start to finish and keep in good graces with the creator.:D
This does not look anything like my 94 IDI turbo. I can't see the side of the starter as the frame is in the way. My starter is between the frame and oil pan. I wonder why you can even see so much of your starter on this 94? I am unable to see that top fastener.


chillman88

Supporting Member
Supporting Member
Joined
Feb 22, 2017
Posts
5,094
Reaction score
4,662
Location
Central NY
This does not look anything like my 94 IDI turbo. I can't see the side of the starter as the frame is in the way. My starter is between the frame and oil pan. I wonder why you can even see so much of your starter on this 94? I am unable to see that top fastener.

There were 3 or 4 different styles of starter available over the years. They all bolt in the same, but they are all built slightly different. That's why yours looks different.


Cubey

Full timer RVer
Joined
Oct 18, 2017
Posts
2,741
Reaction score
901
Location
USA
In the original post, is that bolt a problem with 4wds or something? Or later gens? Here's a pic of my 87 F250's. Has more room it looks like. I paid a shop to replace it and the problem they had was the starter in the parts fiche was wrong and wouldn't fit. Took 3 tries before they got the right one.

You must be registered for see images attach


The space on my RV might be different. It's got probably the original starter still. Old pic, didn't take a shot with the space at the end visible.

You must be registered for see images attach


IDIBRONCO

IDIBRONCO
Joined
Feb 5, 2010
Posts
8,415
Reaction score
6,777
Location
edmond, ks
It's the bolt on the other side of the solenoid that gives the problem (you can't see it in your pictures). I think that it's usually more of a starter shape issue than anything else.


ISPKI

Welding/metallurgical engineer/Metalsmith
Joined
Jul 13, 2015
Posts
721
Reaction score
320
Location
Granby CT
I have a combination of 3/8" extensions that seem to fit back there just right. Done maybe 4 starters on different trucks over the last several years and it was not that big of an issue, but yeah its almost impossible to actually see it from any angle.


ttman4

Last Nite's Dream..
Joined
Oct 31, 2005
Posts
778
Reaction score
284
Location
Hi in the Cascades, Nearly- Redmond,Oregon
One other way to get to that top inside vengeful bolt is to start taking the starter apart piece by piece till you can get to that bolt. Guaranteed to work!! LOL

Once was in a starter repair shop getting my semi starter rebuilt. In comes a local farmer, mad as blazes, carrying a cardboard box full of starter pieces & bolts that came off a Ford farm tractor. Said he couldn't get to top inside bolt so he just took the starter apart. Then had to bring to starter shop to get it put back together.


IDIoit

MachinistFabricator
Supporting Member
Joined
Aug 26, 2014
Posts
12,959
Reaction score
3,152
Location
commiefornia
top starter bolt? never heard of her! lol

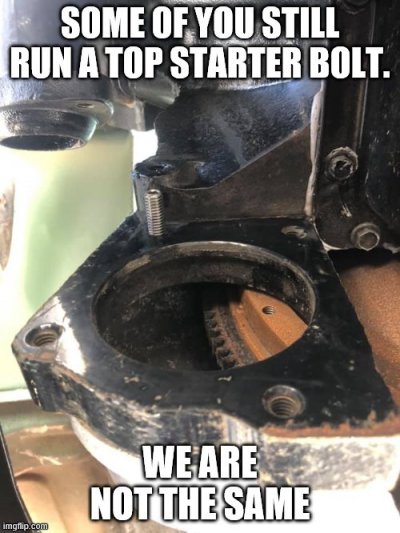

stud on the top for the win.

also a powermaster 9050 is alot easier
