Factory Turbo Y pipe fit issue

5 oclock

Full Access Member
Joined
Feb 9, 2021
Posts
109
Reaction score
18
Location
Oregon
Its a 6 9

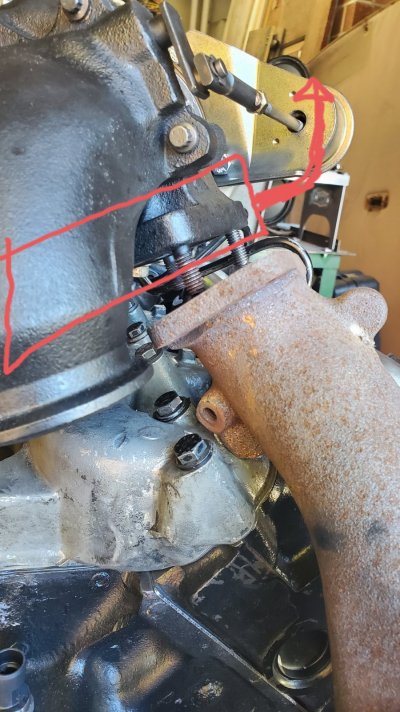

So as you can see in the pic my y pipe is not close to fitting. Hits the intake manifold and even the block from what I can see. Pre attaching it doesn't allow the turbo to sit on the pedestal. It's an either or situation.

I can cut the tab off and it wouldn't be enough. What am I missing? Putting the exhaust headers on soon to determine if that fitment will even be close. I'm fraid this will take a custom accommodation.

Is there a way to turn the turbo out up? Allowing the the pipe to bolt up higher missing both the fuel line and allowing more clearance between the Intake?


Attachments

  • 20210905_130151.jpg
    315.6 KB · Views: 20

aggiediesel01

Full Access Member
Joined
Dec 29, 2016
Posts
531
Reaction score
417
Location
Houston, TX
Can you also post some pics that show more of the feed pipe and back of the motor? It looks kind of like the upper turbo feed pipe isn’t oriented correctly but it’s hard to tell from the close up, or maybe the lower “y” is rocked too much to one side? How does the crossover pipe fit up to the “y”? Or twist the scroll on the center section aka “clock the housings” differently.


5 oclock

Full Access Member
Joined
Feb 9, 2021
Posts
109
Reaction score
18
Location
Oregon
Pics


Attachments

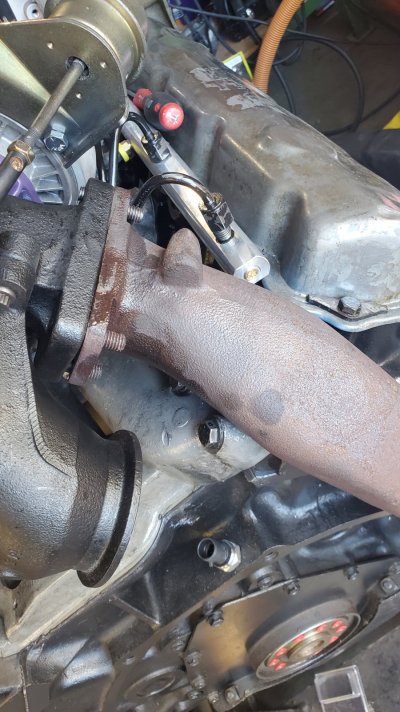

  • 20210905_145635.jpg
    335.2 KB · Views: 15

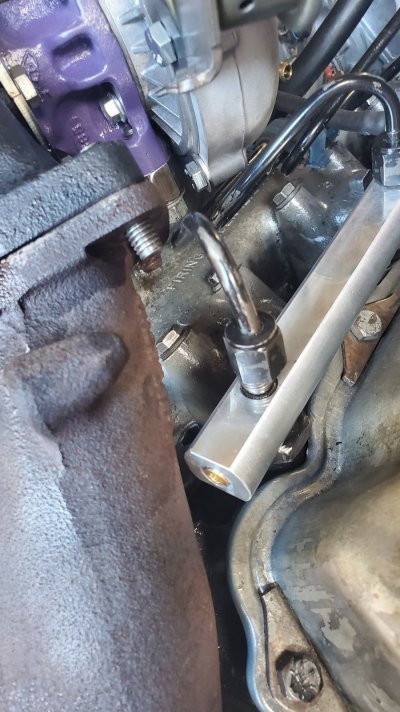

  • 20210905_145644.jpg
    277.5 KB · Views: 15

aggiediesel01

Full Access Member
Joined
Dec 29, 2016
Posts
531
Reaction score
417
Location
Houston, TX
Looks good now, glad you got it. Might want to consider heat wrap or ceramic coating that feed pipe to help keep the heat off the return rails. I don’t have much experience with the solid return rails but excess aluminum expansion or enough transferred heat to melt the orings at that last injector may cause a leak that would be a bear to deal with.


5 oclock

Full Access Member
Joined
Feb 9, 2021
Posts
109
Reaction score
18
Location
Oregon
So true thank you for the heads up! I have some wrap I'll put on it. Can you put wrap over hi temp paint?
