1993 E4OD flex plate/ crank shaft spacer

stevebates

Registered User
Joined
Dec 1, 2014
Posts
57
Reaction score
28
Location
alexandria va
My Flex plate has broke. It galled the mating surface of the thick spacer between the end of the crank and the torque converter. I am looking for a replacement part. Can file on mine but would prefer using a better one.


stevebates

Registered User
Joined
Dec 1, 2014
Posts
57
Reaction score
28
Location
alexandria va
I am confused (not unusual these days). If I counted correctly, I have ten bolts to hold my flex plate onto the crankshaft. All the flexplates that I am seeing listed for a 93 NA IDI have nine. The flexplate I got from Rock Auto has nine. Did I get the incorrect flexplate or did I miscount my bolts.


IDIBRONCO

IDIBRONCO
Joined
Feb 5, 2010
Posts
10,001
Reaction score
8,147
Location
edmond, ks
You must have miscounted your bolts. IDIs have nine while the PSDs have ten. There is ten holes in some of the IDI flywheels/flexplates. Some of the earlier 6.9s had a small dowel in the crankshaft in the circle of flywheel bolts.


frankenwrench

overkill is under rated!
Joined
Oct 8, 2017
Posts
832
Reaction score
475
Location
Weatherford tx
Im not sure if the idi is different from the idit in that spacer aspect, but I has one for an idit laying around.


Va_Mike

Full Access Member
Joined
Apr 25, 2019
Posts
208
Reaction score
83
Location
Southeastern Virginia
I am pretty sure I have a flexplate and the spacer for the E4OD that I pulled from my parts truck. If I have the spacer its yours if you want it, just pay shipping.


77 F-250

Registered User
Joined
Mar 12, 2018
Posts
24
Reaction score
7
Location
New Hampshire

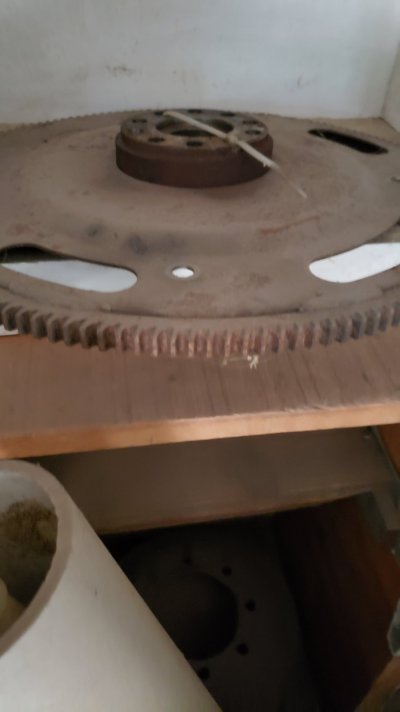

I also have one out of a 91 van. Just pay shipping.


Attachments

  • 20211004_114536.jpg
    89.1 KB · Views: 8

frankenwrench

overkill is under rated!
Joined
Oct 8, 2017
Posts
832
Reaction score
475
Location
Weatherford tx

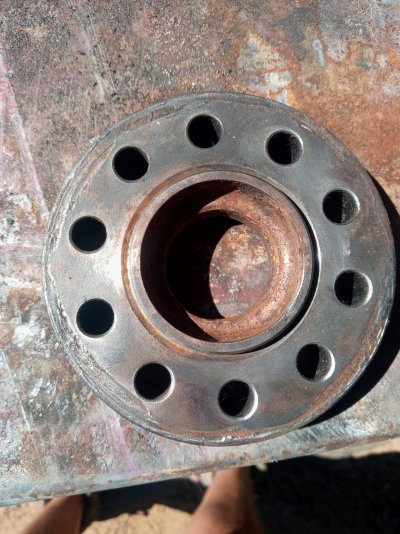

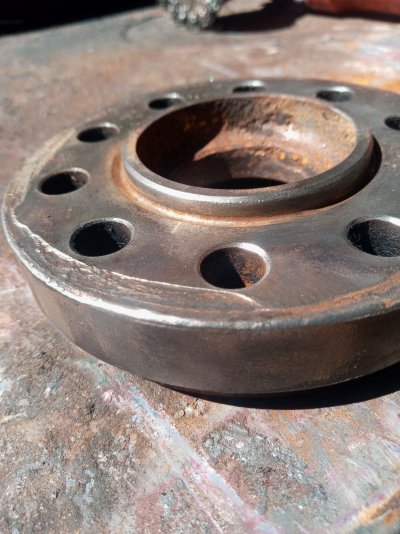

Just looked at mine. Not sure if its of any interest


Attachments

  • 16333750892621300340274772463786.jpg
    490.7 KB · Views: 4
  • 16333751122226313892102219944216.jpg
    388.5 KB · Views: 5

chris142

Full Access Member
Joined
Apr 15, 2012
Posts
2,975
Reaction score
345
Location
SoCal
You must have miscounted your bolts. IDIs have nine while the PSDs have ten. There is ten holes in some of the IDI flywheels/flexplates. Some of the earlier 6.9s had a small dowel in the crankshaft in the circle of flywheel bolts.
The idi is loosely based on the IHC 266,394,345 and 392. Those also have only 9 bolts with an empty spot
